| Price: | US $ 3.5-3.7/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1000/Piece |
| Pay Type: | T/T |
| Prod Model: | XCBI0502003-01 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Drive Method: | 1/4duty, 1/3bias |
| Polarizer Type: | Transmissive / Negative /Glare |
| Operating Temp: | -20--70 |
| Storage Temp: | -30--80 |
| Voltage: | Vdd:3.3V Vlcd:4.5V |
| Screen Size: | ≤17" |
| Application: | Mobile Phone |
| Aspect Ratio: | 4:3 |
| Feature: | With Remote Control |
| Type: | VA |
| Widescreen: | Not Widescreen |
| Response Time: | 16ms |
| 3D: | 3D |
| Interface Type: | VGA |
| Manufacturer | XUDING |
| Series number | XCBI0502003-01 |
| Display format | Graphic Dots |

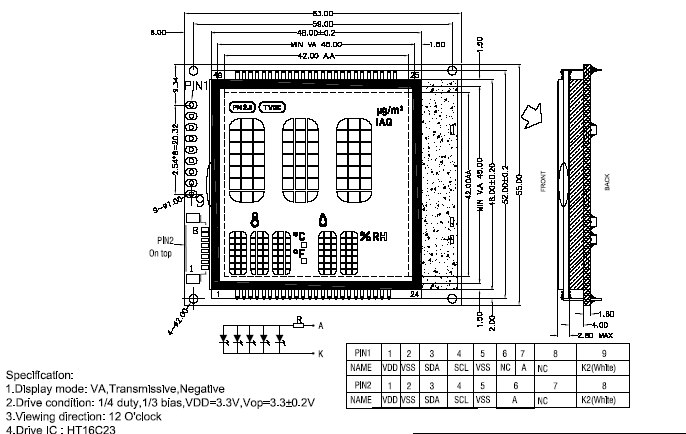

| Outline dimension | 63*55 mm |
| Visual area | 45*45 mm |
| Active area | 42*42 mm |
Character size | mm |
| DOT (pixel) size | mm |
IC package | COB |
IC or equivalent | HT16C23 |
Interface | 1/4Duty 1/3Bias |
| Interface | Parallel |
| Display type | VA |
Sunlight readable | No |
| Touch panel optional | No |
| Contrast ratio(typ) | No |
| Viewing direction | 12:00 |
LED backlight color | Blue /yellow green /gray |
| Appearance | White on blue/black on yellow green/white on gray |
| Power supply(typ) | 3.3V |
| Backlight current (typ) | side, white Led(3PCS) |
Operating temp | -20ºc~70ºc |
| Storage temperature | -30ºc~80ºc |
| If accept customized | Yes |
| RoHS compliance | Yes |
